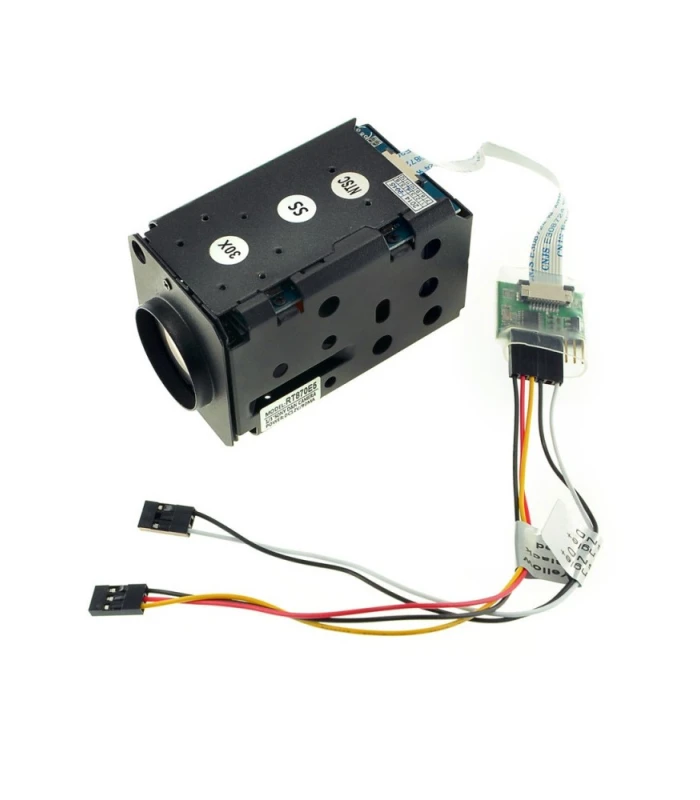

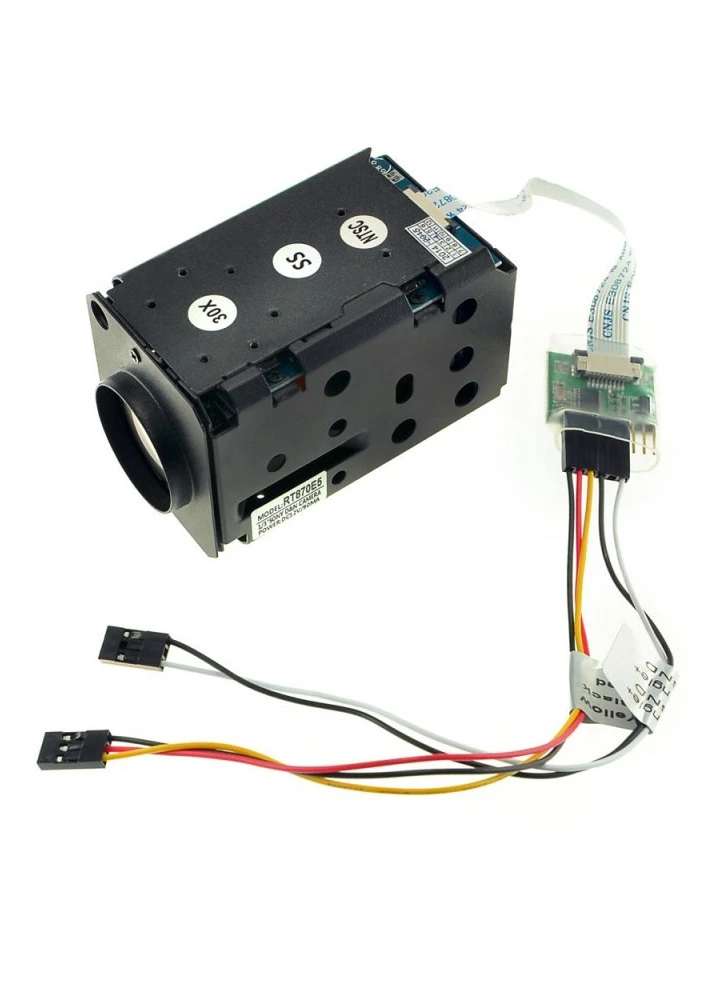

30x Zoom 700TVL CMOS Camera PWM Control
£100.00 Inc. VAT
This camera offers a 30X optical zoom, controllable via PWM signal.
Only 2 left in stock|Next shipping: 01/05/2026
A compact long-range zoom camera designed for FPV, surveillance, and ground-based monitoring, offering smooth PWM-controlled zoom and reliable analog video output.
Built around a Sony CCD sensor with Effio DSP, this camera delivers clear 700TVL video with strong low-light performance. The 30x optical zoom (3.9–85.8mm) allows you to capture distant detail with precision, while PWM control lets you adjust zoom directly from your transmitter or ground controller. Auto focus, WDR, and digital noise reduction help maintain a stable, usable image in changing lighting conditions, making it well suited to UAV and remote monitoring setups.
The camera outputs standard analog video and runs on 12V, with simple wiring for video, power, and PWM control.
Notes:
PWM signal input (white wire) allows direct zoom control from your receiver
Yellow = video out, Red = 12V input, Black = GND
Designed for analog FPV systems – not compatible with digital HD systems
- Sensor: 1/3” Sony CCD+Effio DSP
- Effective Pixel: 976(H) x 596(V)
- Tv System: PAL/NTSC Optional
- Resolution: 700TVL
- Min. Illumination: Color: 0.01Lux; B/W: 0.001Lux
- Digital Electronic Zoom: No
- WDR: Yes
- White Balance: Auto
- S/N Ratio: >60dB(Enhanced)
- Electronic Shutter: PAL:1/50~1/10000 seconds NTSC:1/60~1/12000 seconds
- Digital Noise Reduction: Yes
- Frame Accumulated: Yes
- Focus Length: 3.9~85.8mm
- Optical Focus: 30X
- Focus: Zoom controlled by ground controller
- Power Supply: DC 12V
- Work Temperature: 0~ 70°C
- Size: 65mmx35mmx43mm
- Weight: 163g
Questions and answers of the customers
-
Hello! I would like to ask how to connect each cable with the FC. Is there any wiring diagram ? Thanks!
-
Q Hello! I would like to ask how to connect each cable with the FC. Is there any wiring diagram ? T...... Read more answer nowA
Hi, I've uploaded the product manual here.
