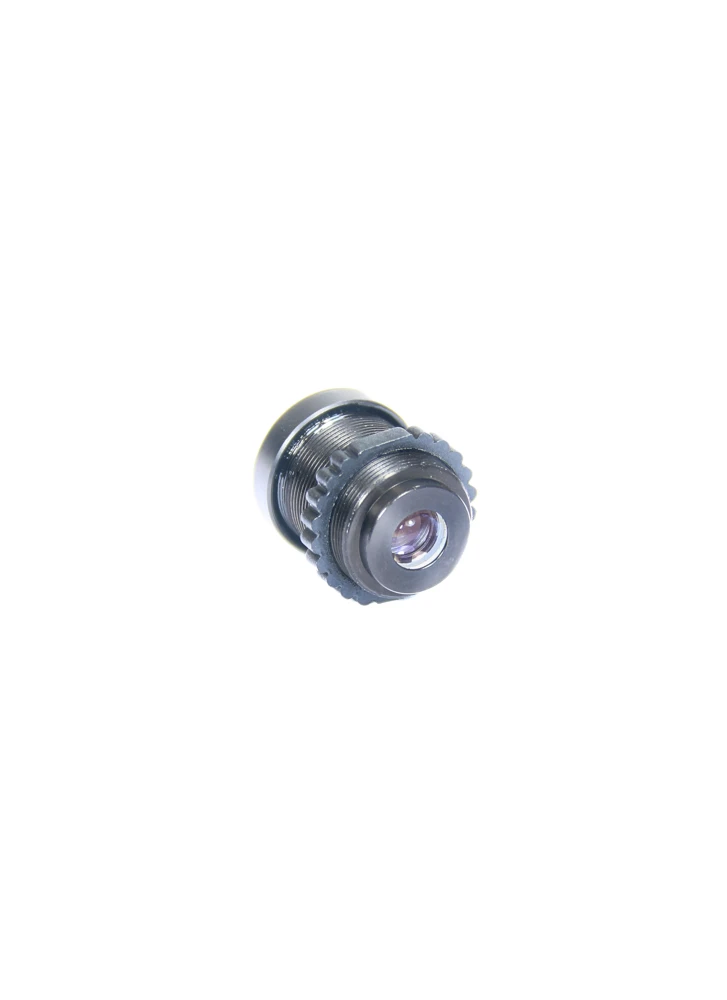

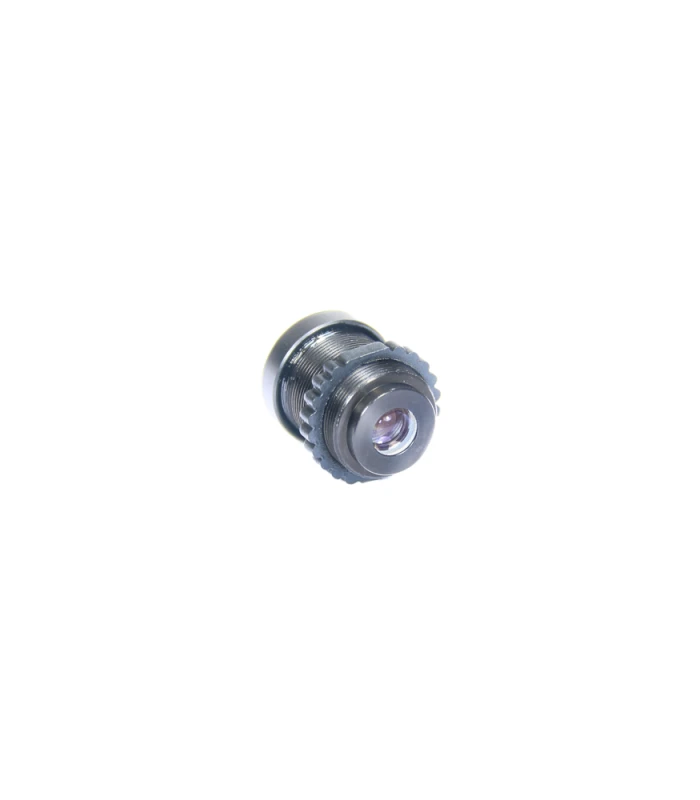

1/3-Inch Replacement FPV CCD Camera Lens (2.5/2.8/3.6/6mm)

£5.50 – £6.90 Inc. VAT

Replacement FPV M12 CCD Camera Lenses in a range of focal lengths to choose from.

0 People watching this product now!

Description

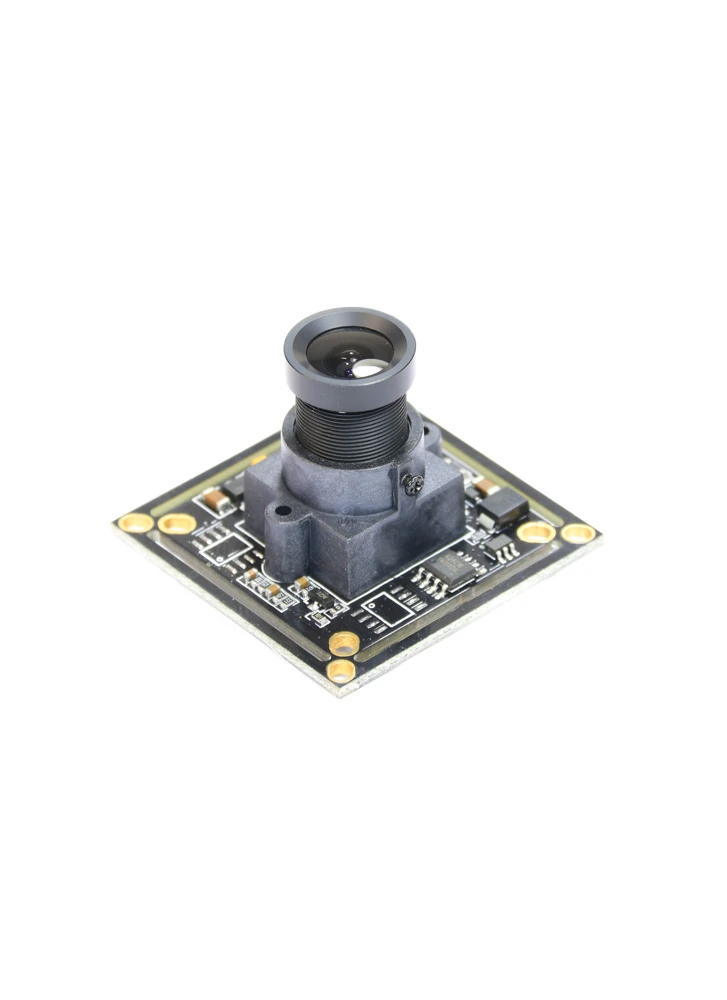

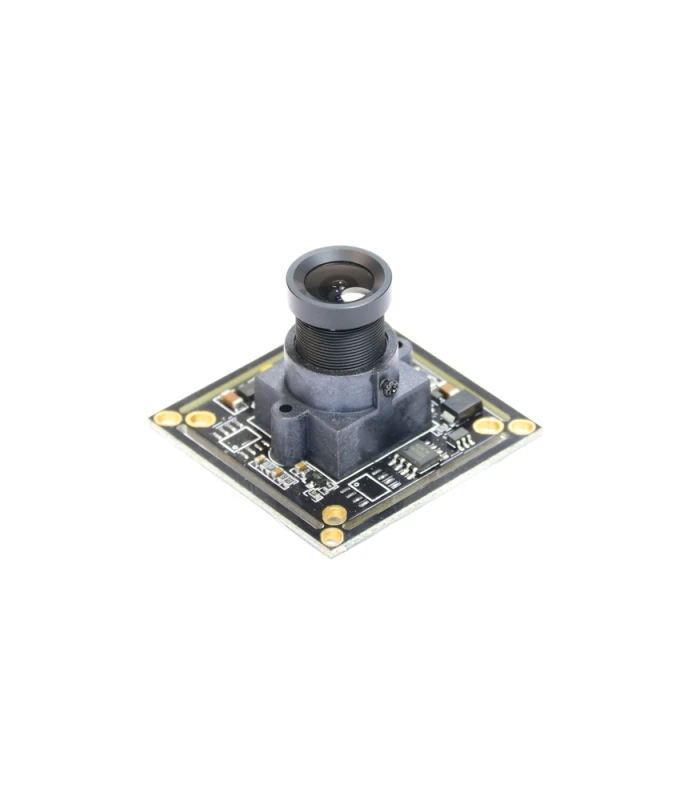

Unhappy with your FPV camera, have you thought about changing the lens? Most FPV CCD board cameras use a screw-in lens, which can be easily replaced with a different type of lens.

The focal length of a lens measured in mm determines the cameras field of view (FOV). The lower the focal length, the wider the viewing angle i.e. 2.8mm gives a wider FOV than 3.6mm. When it comes to choosing a lens, ultimately it comes down to personal preference. However, generally beginners prefer to fly with a wide-angle lens, like a 2.5mm – 2.8mm which allows you to see much more of your surroundings. On the other hand, some more experienced fliers, prefer a narrower FOV like that offered by a 3.6mm lens, which produces a ‘flatter’, less distorted image with greater detail. Depth perception is also made easier with a 3.6mm lens.

All of the lenses have an aperture of F2.0 and are suitable for 1/3″ CCD chipsets (most FPV board cameras).

2.1mm: 140° ‘Super Wide Angle’ FOV

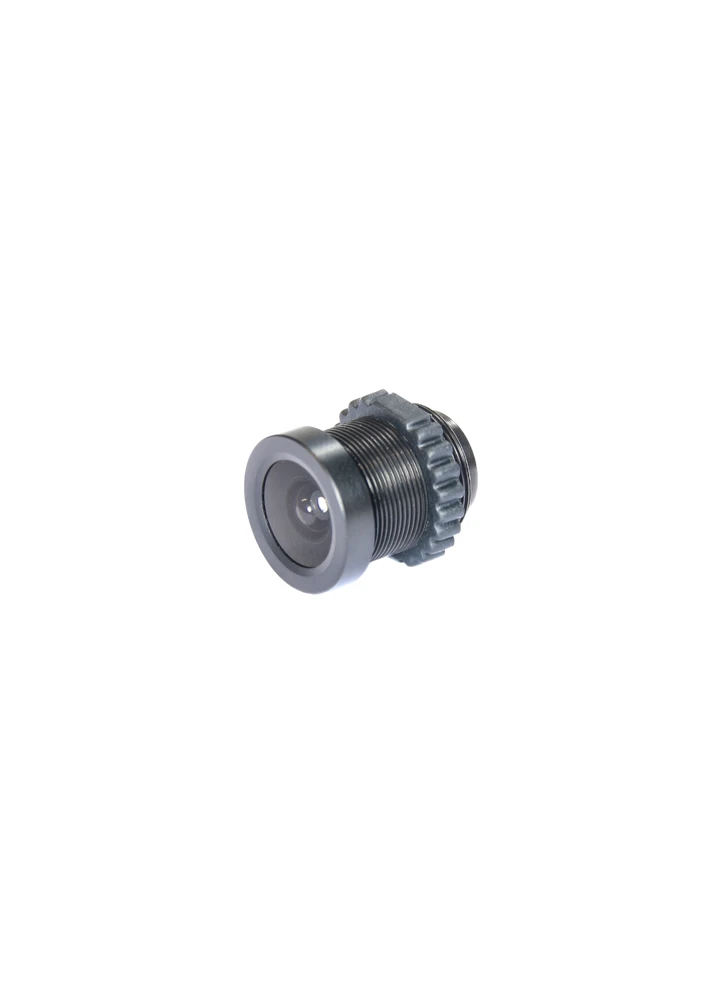

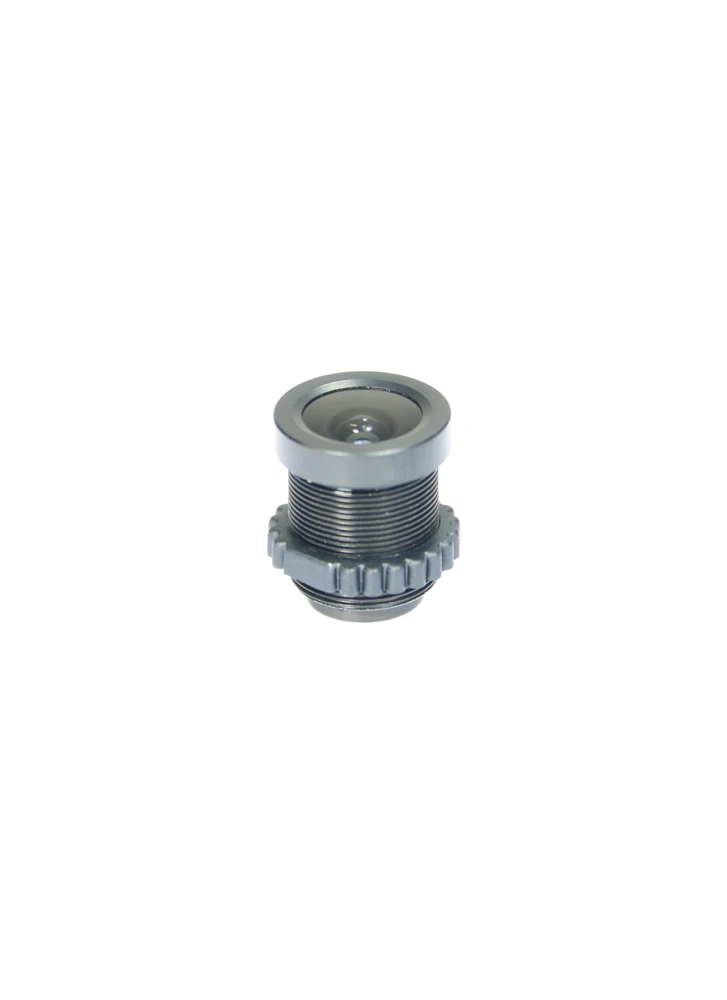

2.5mm: 130° ‘Wide Angle’ FOV
2.8mm: 115°
3.6mm: 90° ‘Flat’ FOV
4.3mm: 78°
6mm: 54° ‘Zoomed’ FOV

Specification

Image format: 1/3″ CCD
Aperture: F2.0
Mount thread: M12x 0.5
Size: 14 x 17mm
Weight: 4g

Included:

1x CCD Lens

(NOTE: CCD lenses do not have an IR filter. If you are using a CMOS camera, you should purchase a lens that includes a IR cut filter, or your video colors will not be correct in daylight)
