Hobbywing XRotor 2020 Combo Stack – F7 FC + 40A 4-in-1 ESC

Name: Hobbywing XRotor 2020 Combo Stack - F7 FC + 40A 4-in-1 ESC - Flying Tech
Brand: Hobbywing
SKU: FC-HWXRF740A
Price: 113.90 GBP
Availability: InStock

Original price was: £118.90.Current price is: £113.90. Inc. VAT

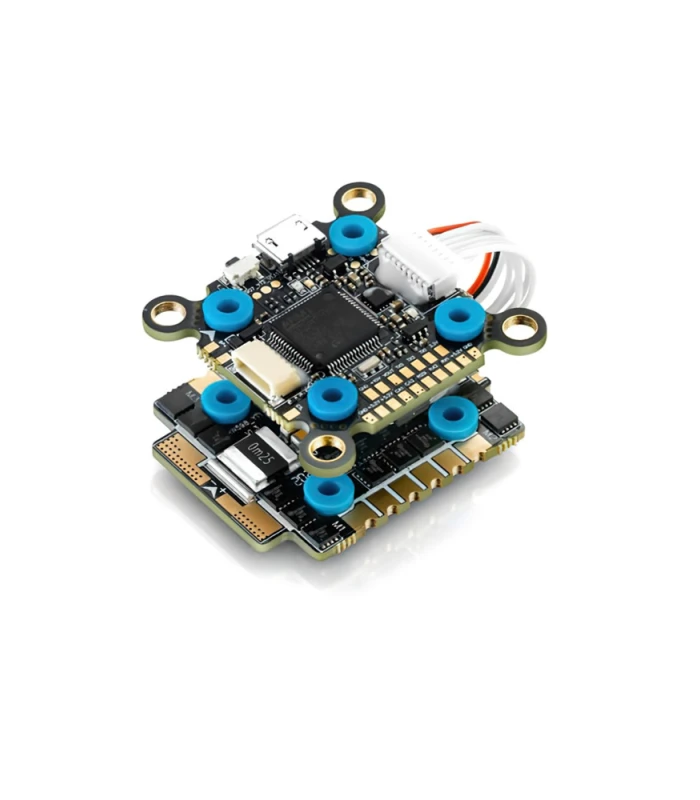

This 20×20 flight stack combines the XRotor F7 FC and XRotor Micro 40A 4in1 ESC.

Only 1 left in stock

Compare

0 People watching this product now!

SKU: FC-HWXRF740A Categories: FC / ESC Flight Stacks, Electronics, Flight Controllers / Autopilots, Racing Drone Flight Controllers Tags: ESC, FC, Flight Controller, Flight Stack, Speed Controller, XRotor

Description

This 20×20 flight stack combines the XRotor F7 FC and XRotor Micro 40A 4in1 ESC.

XRotor F7 FC:

The XRotor F7 Convertible Flight Controller from Hobbywing continues to impress with its latest iteration. This is Hobbywing’s first flight controller to implement a super fast F7 MCU and the MPU6500 gyro. It also now comes with an all-new 5V & 12V dual BEC Circuit and a special interface for the DJI image transmission system, allowing support for both analogue and DJI digital FPV video systems. As before, it supports other useful features such the BetaFlight OSD, voltage monitoring and on-board pit switch.

XRotor 40A ESC:

Size needn’t limit performance; the Hobbywing XRotor Micro 40A is a 20x20MM 4in1 ESC that out performs some ESCs twice its size. It can handle 3S-6S voltage and up to 40A per channel! It also features the latest in ESC technology, so it has a 32bit MCU with a running frequency of up to 48MHz and has installed 3rd-generation BLHeli-32firmware. Finally, the 4in1 ESC has a built in voltage and current sensor.

Features:

F7 FC

Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity ICM20602 six-axis motion sensor.
Supports BetaFlight, Cleanflight, Butterflight, Inva, and other mainstream FPV firmware.
DJI image transmission system port equipped with corresponding flat cable
Supports bidirectional DShot digital throttle communication.
Unique installation design and shock absorption structure.
On-board large capacity Flash memory chip.
On-board 5V & 12V dual BEC circuit.
On-board Pit Switch module.

40A 4-in-1 BLHeli_32 ESC

All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us), and Multishot (5-25us).
Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power-up.
High-performance 32-bit microprocessor with a running frequency of up to 48MHz for an excellent performance.
BLHeli_32 firmware is the third generation BLHeli.
Unique Soft Mounts

Specification

F7 FC

Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000 and etc
Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
Mounting Holes: Convertible 20x20mm / 30.5×30.5mm
Programming via: Betaflight/Cleanflight-configurator
Firmware: HOBBYWING_XROTORF7CONV
Voltage Monitoring: Supported
Current Monitoring: Supported
FC Programming: Supported
External Buzzer: Supported
BEC: 5V@1.5: 10V@1.5A
LED Control: Supported
USB Port: MicroUSB
Size: 32x32mm
OSD: Built-in
Weight: 3.3g

40A 4-in-1 ESC

Connectors: (In) XT60 (w/ Wires Soldered on) / (Out) No
Input wires: 14AWG-100mm* (Red/Black)
Output Wire: No wires but solder tabs
Weight / Size: 12.0g / 40x33x5mm
ESC Programming: BLHeliSuite32
Throttle Calibration: Supported
Mounting holes: 30.5×30.5mm
LiPo Power input: 3S-6S
Burst Current: 60Ax4
Cont.Current: 40Ax4
BEC Output: No

Included:

1x Hobbywing XRotor Micro Combo Stack – F7 FC + 40A 4-in-1 BLHeli_32 ESC
1x Soft Mounting Grommets Set
1x Signal Cable
