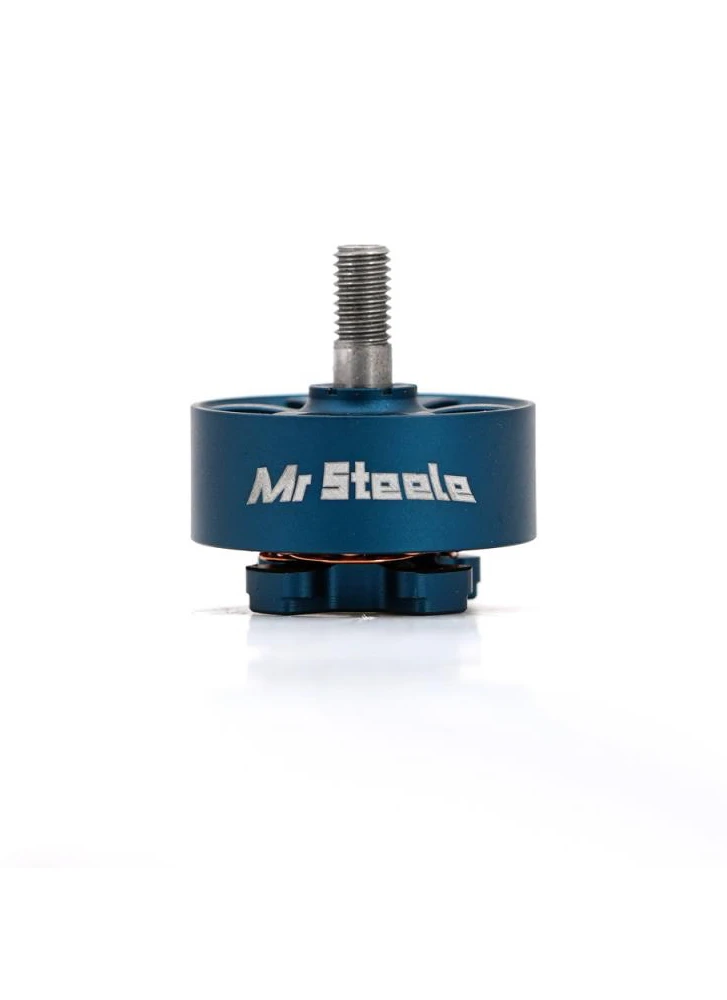

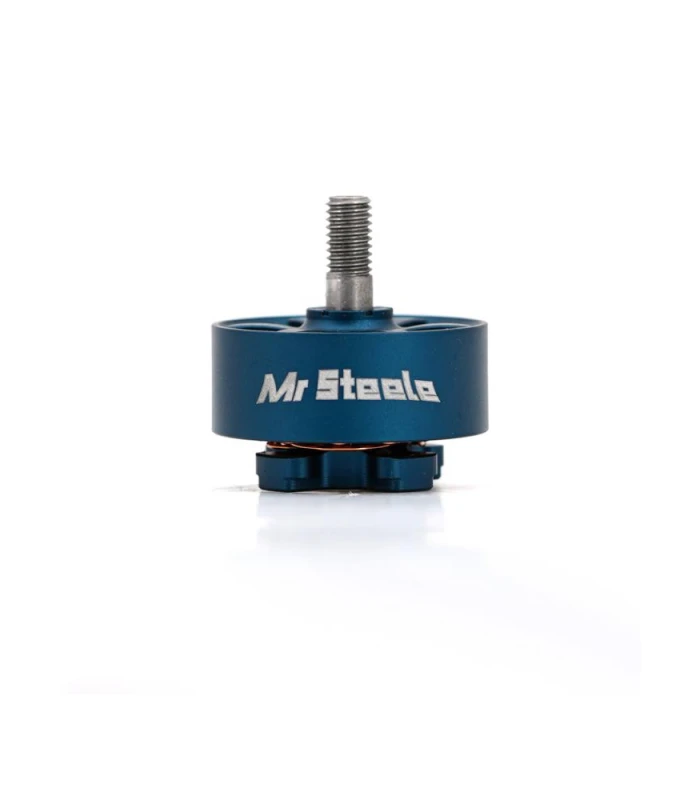

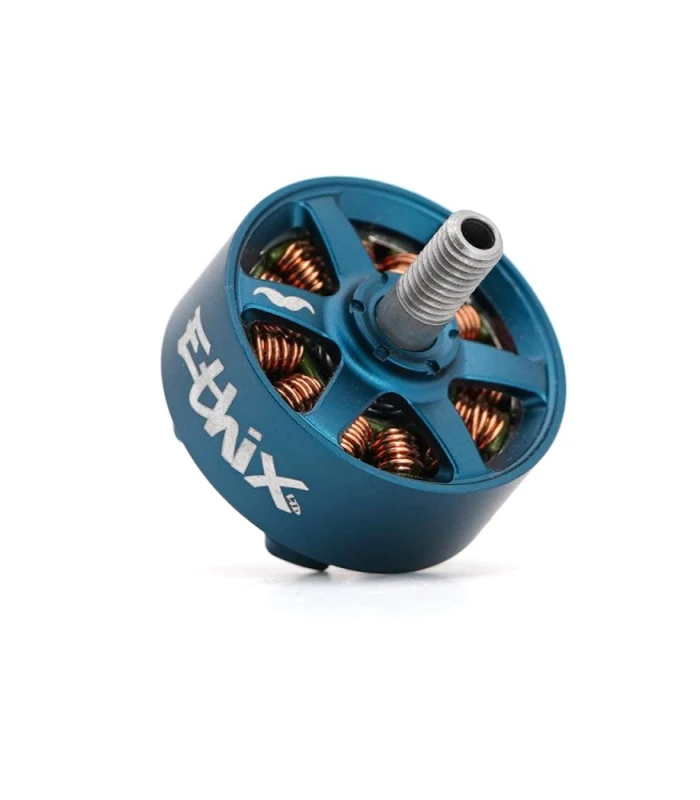

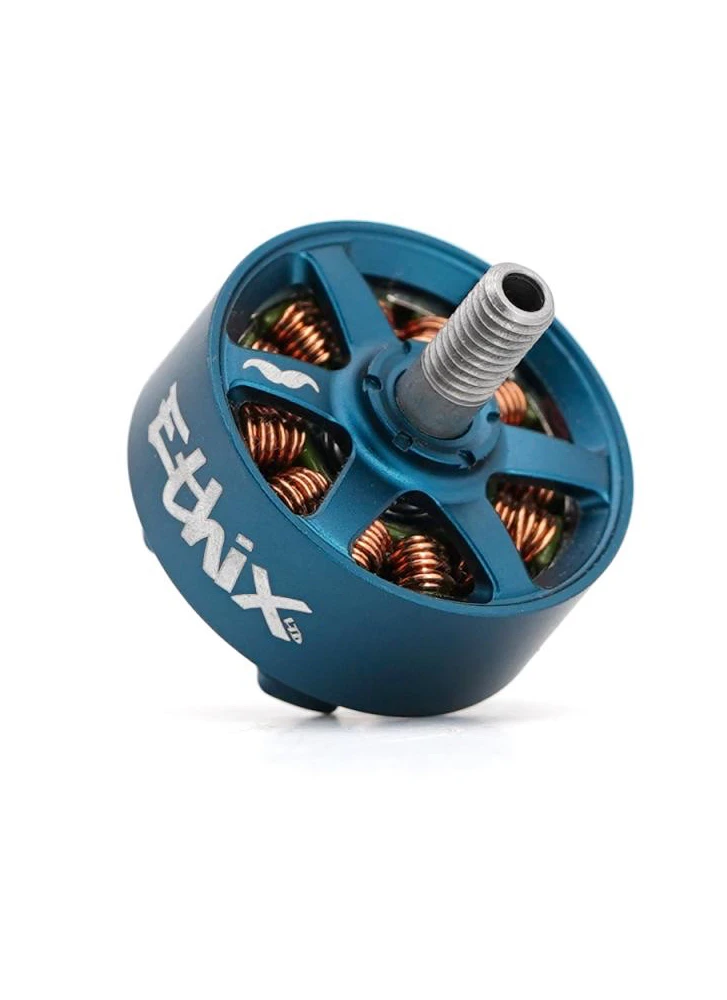

ETHIX Mr Steele Stout Motor V5 2307 1950kv 6S

£27.90 Inc. VAT

A good motor choice for 5inch freestyle quads (6S LiPo).

In stock

0 People watching this product now!
SKU: M-TBS 2306-1950KV Categories: , , Tag:
Description

Introducing the Mr. Steele V5 Stout 2307 (1950KV) 6S (5โ€-5.5โ€ prop) FPV freestyle motor. The Stout motor is wound at 1950KV for extra power and speed.

The V5 features an increased stator size and a redesigned motor bell setup for more durability. This new iteration of my trusted power train formula follows a lightweight ethos with increased power and torque where it counts. Attaining a high power-to-weight ratio cannot overstate when building a high-performance aircraft. The V5 Silk add confidence with even heavier HD cameras.

Thank you for your support and take pride in knowing that you are the reason I am able to keep evolving in this amazing space we call the FPV community.

V5 MOTOR HIGHLIGHTS

  • Increased stator size 2307

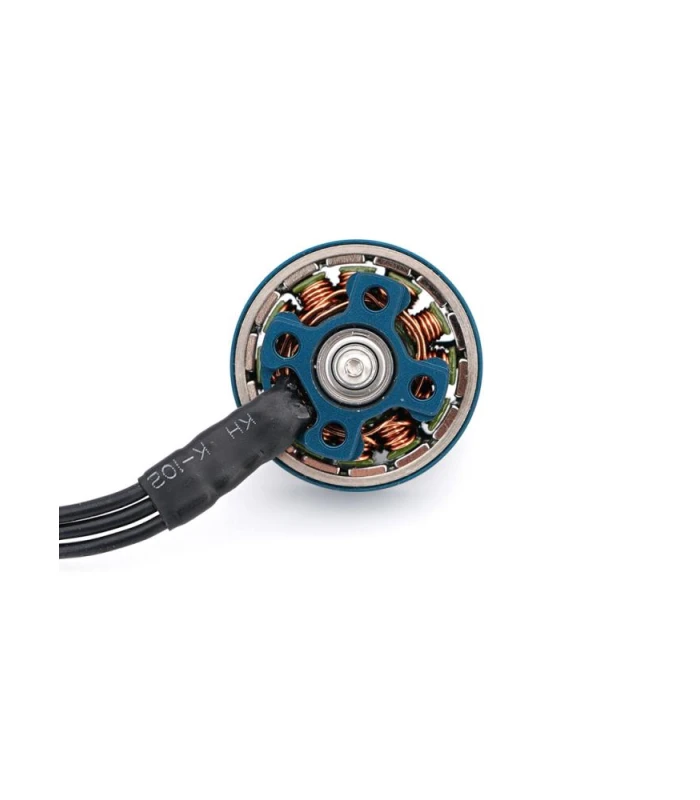

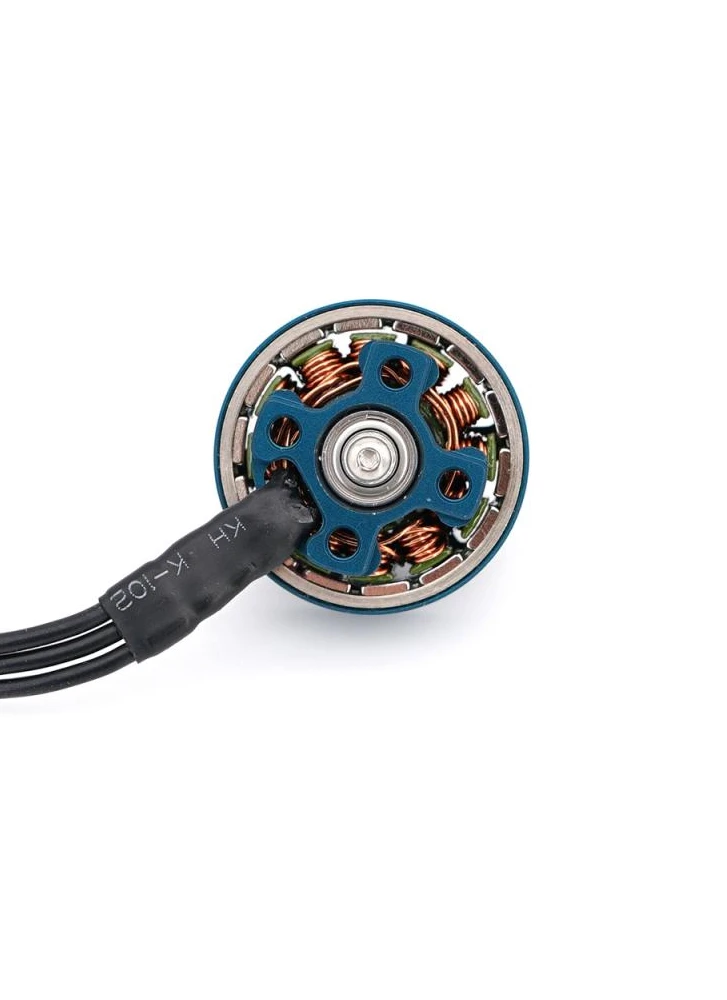

  • Base redesign 16×16(only) mounting holes (new structural changes for more durability)
  • Complete bell redesigned (durability and smoothness in mind)
  • Thick single strand copper winding
  • Increased EFFICIENCY & POWER

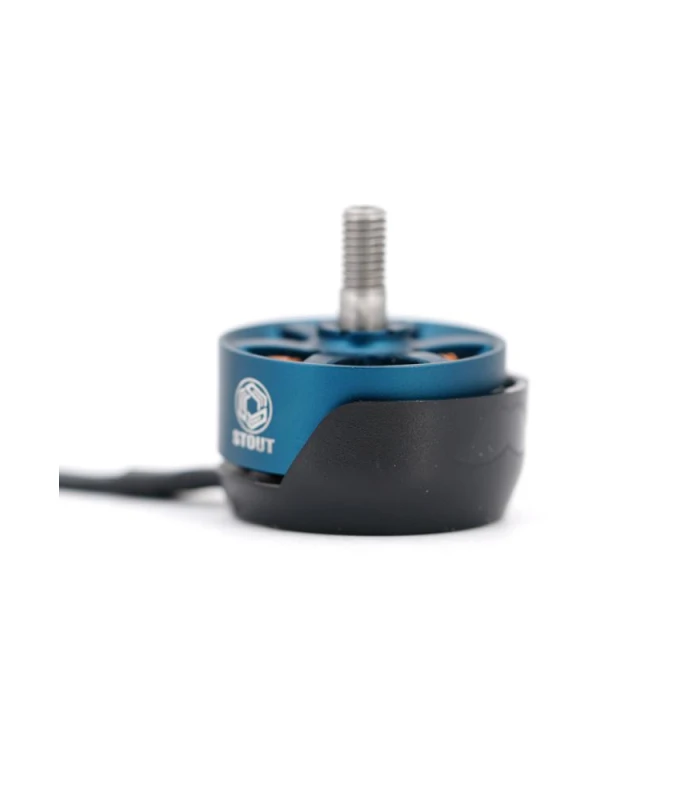

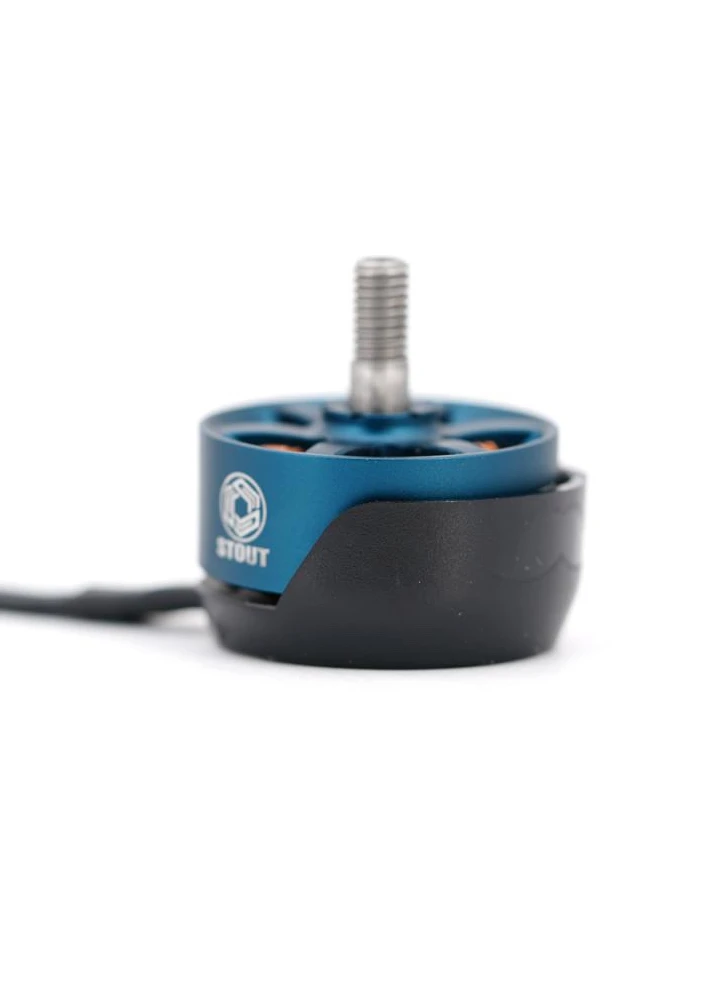

  • Complete Interchangeable motor pants redesign (thicker & more crash/low temperature resistant, better gap fitment, + more protection coverage for the โ€œtall pantsโ€)
  • Better assembly tolerances
  • Overall QC improvements
  • 9mm steel bearings
  • Eco-Friendly packaging
  • Motor weight 33.8g (full-length cables) compared to Stout V1 at 31.5g
  • Pants Weight – Low – 1g vs (0.8 v3) | Tall – 2g vs (1.8 v3)

All in all this motor is an absolute gem only increasing the weight by a tad over 1g from the previous model while achieving more power, efficiency, and most importantly durability.

Enjoy & Thank you for your continued support. -Steele

Specification
  • Stator Size (Diameter): 23mmx7mm
  • Kv:ย 1950kv
  • Magnets:ย N52SH Curved
  • Windings:ย 13turn DLRK
  • Shaft Length (mm):ย 10.5mm
  • Shaft Diameter (mm):ย 4mm
  • Shaft material:ย Steel
  • Bearing :ย NMB684
  • Weight (With Wires) (g):ย 36.5g
  • Cells (Lipo):ย 6S
  • Max Current (A):ย 45A
  • Max Burst Current (A): 60A
  • Internal Resistance (Rm): 60mฮฉ
  • Wire Spec (AWG):ย 20#-135mm
  • Base Mounting Pattern:ย 16x16mm
  • Base Mounting Thread:ย M3 Thread
  • Motor Overall Dimensions:ย ฯ†28.6mm*18.2mm

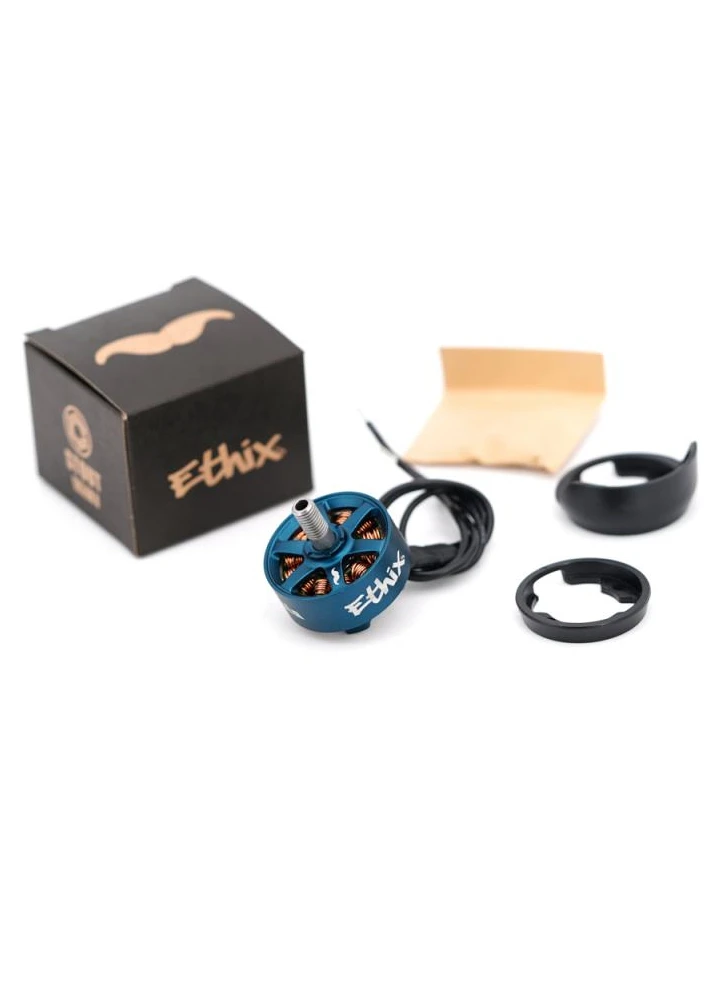

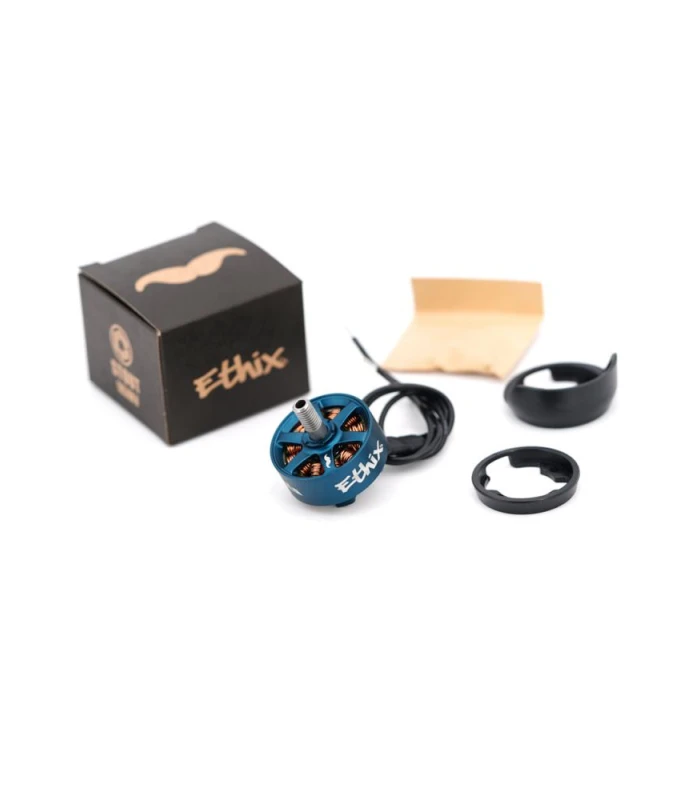

INCLUDED

  • 1 x Motor
  • 1 x Tall Motor Pants
  • 1 x Short Motor Pants
  • 4 x motor screws
